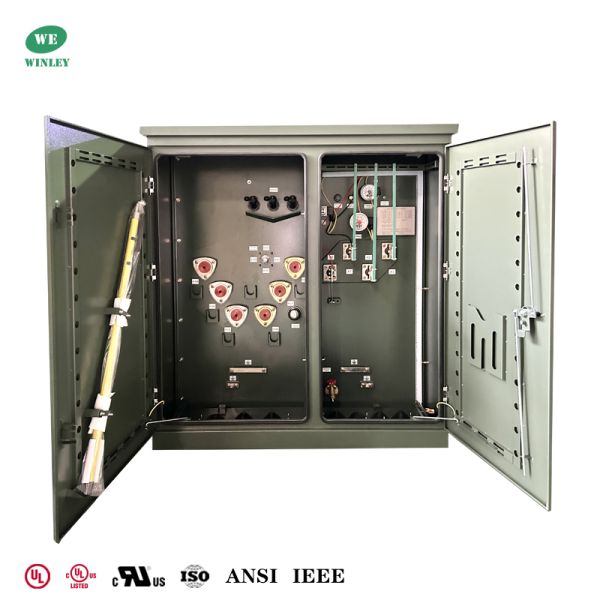

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards

Name: 75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards
Brand: WINLEY
Price: 5000 USD

Cheap 75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards for sale

Brand Name : WINLEY

Model Number : ZGS-75/5

Certification : UL/cUL,CE,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $5000-$150000

Payment Terms : T/T

Supply Ability : 1000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Transformer Type : Liquid Filled Pad Mounted

Phase : Three Phase

Feed Type : Loop Feed

Capacity : 75 KVA

Primary Voltage : 4160V

Secondary Voltage : 208Y/120

Cooling Class : ONAN; Self-Cooled

Efficiency Ratings : DOE 2016 , CSA , ANSI/IEEE

Contact Now

75kva Three Phase Pad Mounted Transformer Step Down 4160V To 208V 120V Electrical Power Transformers

WINLEY's three-phase pad mounted transformers are widely supplied to the North American market, especially the United States. We are committed to providing high-quality, reliable, and efficient power distribution solutions to meet our customers' needs.

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards

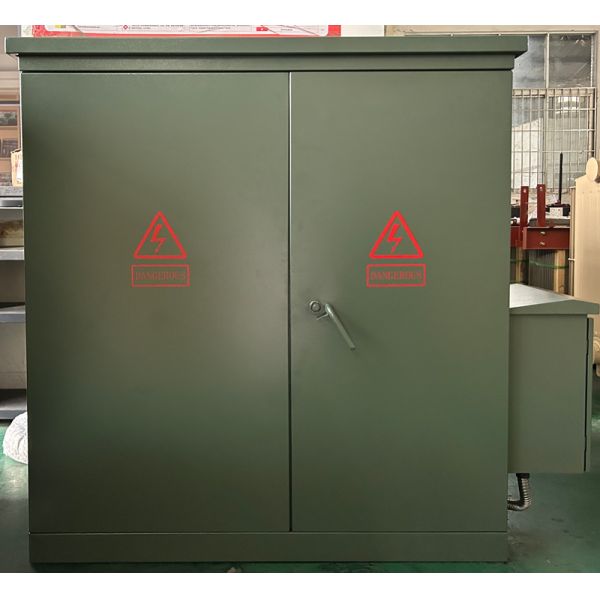

A padmount or pad-mounted transformer is a ground mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards

Technical drawings

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards

Feature

• 60 Hz operation.
• 65°C average winding rise.
• Loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 60 kV (Dead Front).
• LV BIL 30kV.
• Three-point latching of low-voltage door.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (± 2.5%)
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI/IEEE standards.

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Operation	Step-Down Operation (Not Approved for Step-Up)
Phase	Three Phase
Capacity	75 KVA
Vector Group	Dyn1
Primary Voltage	4160V
Secondary Voltage	208Y/120
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material	Aluminum
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Efficiency %	99.10%

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards
