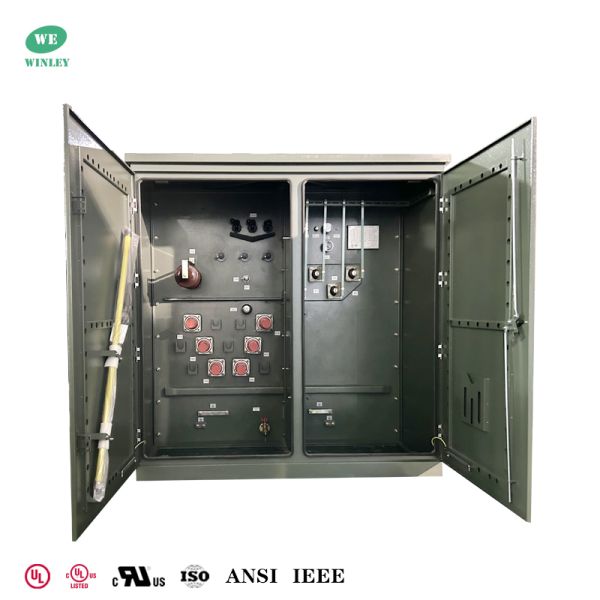

Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard

Name: Three Phase Pad Mounted Transformer 1000 KVA 345KV to 208Y120 Oil Immersed Power Transformer with 6560 Temperature Rise ANSI C571234 Standard
Brand: WINLEY
Price: 5000 USD

Cheap Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard for sale

Brand Name : WINLEY

Model Number : ZGS-1000/35

Certification : UL/cUL,CE,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $5000-$150000

Payment Terms : T/T

Supply Ability : 1000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Transformer Type : Pad Mounted Transformer

Phase : Three Phase

Capacity : 1000 KVA

Primary Voltage : 34.5KV

Secondary Voltage : 208Y/120

Temperature rise : 65/60 ℃

Dimension : 2300mm*1900mm*1900mm

Standard : ANSI C57.12.34

Contact Now

Three Phase Pad Mounted Transformer 1000kva 34.5kv To 208v Oil Immersed Power Transformer

Winley Electric delivers a wide selection of three‑phase pad‑mounted distribution transformers for commercial and industrial customers. We offer various ratings and accessory configurations so you can select the exact solution for your system.

Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard

WINLEY Electric’s liquid‑filled pad‑mounted transformers are dielectric‑fluid distribution transformers rated up to 34.5 kV. Designed for underground power distribution, they serve applications such as data centers, hospitals, commercial buildings, private utilities, and industrial plants. Our products are UL listed and designed and tested to applicable ANSI, IEEE, CSA, and DOE standards.

UL Certificate cUL Certificate

Main Technical Specifications

No.	Particulars	Unit	Specification
1	Type	~	pad mounted, loop feed
2	Rated capacity	kVA	1000
3	No. of Phase	~	3
4	Primary voltage	V	34500
4	Primary bushing	~	(6) 35KV class 200A Copper 1-piece bushing + (1) H0 Porcelain bushing
4	BIL	kV	150
5	Secondary voltage	V	208Y/120
5	Secondary bushing	~	(4) 10-hole spade
5	BIL	kV	30
6	Tapping type	~	off-circuit
7	Tapping range	V	36200, 35360, 34500, 33640, 33000, 32175, 31350
8	Cooling method	~	ONAN
9	Rated frequency	Hz	60
10	Vector group	~	Dyn1
11	Insulation class	~	A
12	Temperature rise	℃	65/60 (winding/top oil)

Technical Drawings

Key Product Features

Small size, reasonable and compact structure
Fully sealed oil tank, fully insulated design, safe and reliable operation
Strong overload capacity and superior resistance to sudden short circuits
Both ring network and terminal power supply can be used
Convenient operation and reliable power supply
Energy saving, low loss, no higher than the new S9 loss value
Good impact performance
Cable joint number can operate 200A load current, with long mechanical and electrical life

Detailed Specifications

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746
